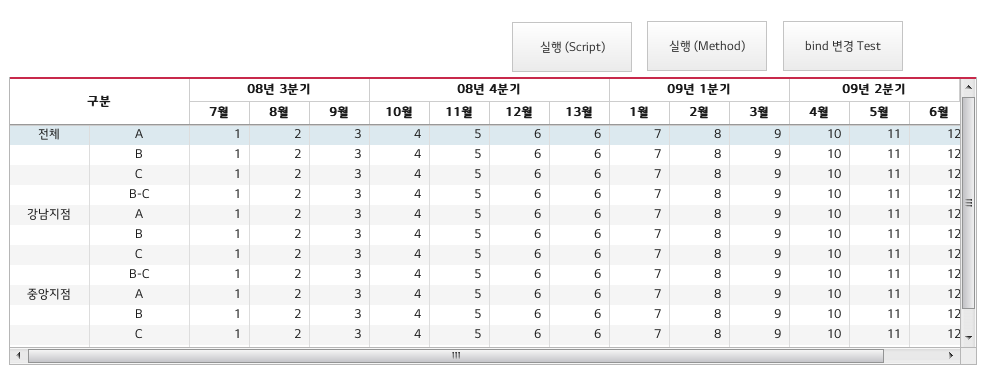

위에 보이는 첫번째 버튼은 Xml 형태로 그리드를 생성하는 법이고
두번째 버튼은 그리드에 속성 함수들을 이용해 생성하는 법이다.
- 주요 함수
setFormatColProperty : 그리드에 현재 설정된 Format Columns의 각 열의 속성값을 설정하는 메소드입니다
ex. setFormatColProperty(i,"size",nColSize);
setCellProperty : 해당 영역에서 지정한 셀의 속성에 값을 설정하는 메소드입니다.
ex. setCellProperty("body", i, "displaytype", "normal");
mergeContentsCell : 그리드의 현재 Format 콘텐츠에 주어진 셀들을 합쳐서 하나의 셀로 만드는 메소드입니다.
appendContentsCol : 그리드의 현재 Format 콘텐츠에 1개의 열을 추가하는 메소드입니다.
<?xml version="1.0" encoding="utf-8"?>
<FDL version="1.5">
<TypeDefinition url="..\..\default_typedef.xml"/>
<Form classname="Sample_Move_Scroll" id="Sample_Move_Scroll" inheritanceid="" position="absolute 0 0 1024 768" titletext="그리드 가변컬럼">
<Layouts>
<Layout>
<Grid taborder="0" binddataset="ds_List" id="grd_Sample" cellsizingtype="col" position="absolute 24 72 992 360">
<Formats>
<Format id="default">
<Columns>
<Column size="80"/>
<Column size="100"/>
</Columns>
<Rows>
<Row band="head" size="23"/>
<Row band="head" size="23"/>
<Row size="20"/>
</Rows>
<Band id="head">
<Cell colspan="2" rowspan="2" text="구분"/>
</Band>
<Band id="body">
<Cell suppress="1" text="bind:BRANCH"/>
<Cell col="1" text="bind:GUBUN"/>
</Band>
</Format>
</Formats>
</Grid>
<Button id="Button00" onclick="Button00_onclick" position="absolute 527 17 647 67" taborder="1" text="실행 (Script)"/>
<Button id="Button01" taborder="2" onclick="Button01_onclick" position="absolute 662 16 782 66" text="실행 (Method)"/>
<Button id="Button02" taborder="3" position="absolute 798 16 918 66" onclick="Button02_onclick" text="bind 변경 Test"/>
<TextArea id="TextArea00" taborder="4" scrollbars="autoboth" position="absolute 24 385 993 678"/>
</Layout>
</Layouts>
<Objects>
<Dataset enableevent="true" firefirstcount="0" firenextcount="0" preload="true" updatecontrol="true" useclientlayout="false" id="ds_List">
<ColumnInfo>
<Column id="BRANCH" size="256" type="STRING"/>
<Column id="GUBUN" size="256" type="STRING"/>
<Column id="COL_200807" size="256" type="STRING"/>
<Column id="COL_200808" size="256" type="STRING"/>
<Column id="COL_200809" size="256" type="STRING"/>
<Column id="COL_200810" size="256" type="STRING"/>
<Column id="COL_200811" size="256" type="STRING"/>
<Column id="COL_200812" size="256" type="STRING"/>
<Column id="COL_200901" size="256" type="STRING"/>
<Column id="COL_200902" size="256" type="STRING"/>
<Column id="COL_200903" size="256" type="STRING"/>
<Column id="COL_200904" size="256" type="STRING"/>
<Column id="COL_200905" size="256" type="STRING"/>
<Column id="COL_200906" size="256" type="STRING"/>
<Column id="COL_200907" size="256" type="STRING"/>
<Column id="COL_TEST" size="256" type="STRING"/>
</ColumnInfo>
<Rows>
<Row>
<Col id="BRANCH">전체</Col>
<Col id="GUBUN">A</Col>
<Col id="COL_200807">1</Col>
<Col id="COL_200808">2</Col>
<Col id="COL_200809">3</Col>
<Col id="COL_200810">4</Col>
<Col id="COL_200811">5</Col>
<Col id="COL_200812">6</Col>
<Col id="COL_200901">7</Col>
<Col id="COL_200902">8</Col>
<Col id="COL_200903">9</Col>
<Col id="COL_200904">10</Col>
<Col id="COL_200905">11</Col>
<Col id="COL_200906">12</Col>
<Col id="COL_200907">13</Col>
<Col id="COL_TEST">bind 테스트1</Col>
</Row>
<Row>
<Col id="BRANCH">전체</Col>
<Col id="GUBUN">B</Col>
<Col id="COL_200807">1</Col>
<Col id="COL_200808">2</Col>
<Col id="COL_200809">3</Col>
<Col id="COL_200810">4</Col>
<Col id="COL_200811">5</Col>
<Col id="COL_200812">6</Col>
<Col id="COL_200901">7</Col>
<Col id="COL_200902">8</Col>
<Col id="COL_200903">9</Col>
<Col id="COL_200904">10</Col>
<Col id="COL_200905">11</Col>
<Col id="COL_200906">12</Col>
<Col id="COL_200907">13</Col>
<Col id="COL_TEST">bind 테스트2</Col>
</Row>
<Row>
<Col id="BRANCH">전체</Col>
<Col id="GUBUN">C</Col>
<Col id="COL_200807">1</Col>
<Col id="COL_200808">2</Col>
<Col id="COL_200809">3</Col>
<Col id="COL_200810">4</Col>
<Col id="COL_200811">5</Col>
<Col id="COL_200812">6</Col>
<Col id="COL_200901">7</Col>
<Col id="COL_200902">8</Col>
<Col id="COL_200903">9</Col>
<Col id="COL_200904">10</Col>
<Col id="COL_200905">11</Col>
<Col id="COL_200906">12</Col>
<Col id="COL_200907">13</Col>
<Col id="COL_TEST">bind 테스트3</Col>
</Row>
<Row>
<Col id="BRANCH">전체</Col>
<Col id="GUBUN">B-C</Col>
<Col id="COL_200807">1</Col>
<Col id="COL_200808">2</Col>
<Col id="COL_200809">3</Col>
<Col id="COL_200810">4</Col>
<Col id="COL_200811">5</Col>
<Col id="COL_200812">6</Col>
<Col id="COL_200901">7</Col>
<Col id="COL_200902">8</Col>
<Col id="COL_200903">9</Col>
<Col id="COL_200904">10</Col>
<Col id="COL_200905">11</Col>
<Col id="COL_200906">12</Col>
<Col id="COL_200907">13</Col>
<Col id="COL_TEST">bind 테스트4</Col>
</Row>
<Row>
<Col id="BRANCH">강남지점</Col>
<Col id="GUBUN">A</Col>
<Col id="COL_200807">1</Col>
<Col id="COL_200808">2</Col>
<Col id="COL_200809">3</Col>
<Col id="COL_200810">4</Col>
<Col id="COL_200811">5</Col>
<Col id="COL_200812">6</Col>
<Col id="COL_200901">7</Col>
<Col id="COL_200902">8</Col>
<Col id="COL_200903">9</Col>
<Col id="COL_200904">10</Col>
<Col id="COL_200905">11</Col>
<Col id="COL_200906">12</Col>
<Col id="COL_200907">13</Col>
<Col id="COL_TEST">bind 테스트5</Col>
</Row>
<Row>
<Col id="BRANCH">강남지점</Col>
<Col id="GUBUN">B</Col>
<Col id="COL_200807">1</Col>
<Col id="COL_200808">2</Col>
<Col id="COL_200809">3</Col>
<Col id="COL_200810">4</Col>
<Col id="COL_200811">5</Col>
<Col id="COL_200812">6</Col>
<Col id="COL_200901">7</Col>
<Col id="COL_200902">8</Col>
<Col id="COL_200903">9</Col>
<Col id="COL_200904">10</Col>
<Col id="COL_200905">11</Col>
<Col id="COL_200906">12</Col>
<Col id="COL_200907">13</Col>
<Col id="COL_TEST">bind 테스트6</Col>
</Row>
<Row>
<Col id="BRANCH">강남지점</Col>
<Col id="GUBUN">C</Col>
<Col id="COL_200807">1</Col>
<Col id="COL_200808">2</Col>
<Col id="COL_200809">3</Col>
<Col id="COL_200810">4</Col>
<Col id="COL_200811">5</Col>
<Col id="COL_200812">6</Col>
<Col id="COL_200901">7</Col>
<Col id="COL_200902">8</Col>
<Col id="COL_200903">9</Col>
<Col id="COL_200904">10</Col>
<Col id="COL_200905">11</Col>
<Col id="COL_200906">12</Col>
<Col id="COL_200907">13</Col>
<Col id="COL_TEST">bind 테스트7</Col>
</Row>
<Row>
<Col id="BRANCH">강남지점</Col>
<Col id="GUBUN">B-C</Col>
<Col id="COL_200807">1</Col>
<Col id="COL_200808">2</Col>
<Col id="COL_200809">3</Col>
<Col id="COL_200810">4</Col>
<Col id="COL_200811">5</Col>
<Col id="COL_200812">6</Col>
<Col id="COL_200901">7</Col>
<Col id="COL_200902">8</Col>
<Col id="COL_200903">9</Col>
<Col id="COL_200904">10</Col>
<Col id="COL_200905">11</Col>
<Col id="COL_200906">12</Col>
<Col id="COL_200907">13</Col>
<Col id="COL_TEST">bind 테스트8</Col>
</Row>
<Row>
<Col id="BRANCH">중앙지점</Col>
<Col id="GUBUN">A</Col>
<Col id="COL_200807">1</Col>
<Col id="COL_200808">2</Col>
<Col id="COL_200809">3</Col>
<Col id="COL_200810">4</Col>
<Col id="COL_200811">5</Col>
<Col id="COL_200812">6</Col>
<Col id="COL_200901">7</Col>
<Col id="COL_200902">8</Col>
<Col id="COL_200903">9</Col>
<Col id="COL_200904">10</Col>
<Col id="COL_200905">11</Col>
<Col id="COL_200906">12</Col>
<Col id="COL_200907">13</Col>
<Col id="COL_TEST">bind 테스트9</Col>
</Row>
<Row>
<Col id="BRANCH">중앙지점</Col>
<Col id="GUBUN">B</Col>
<Col id="COL_200807">1</Col>
<Col id="COL_200808">2</Col>
<Col id="COL_200809">3</Col>
<Col id="COL_200810">4</Col>
<Col id="COL_200811">5</Col>
<Col id="COL_200812">6</Col>
<Col id="COL_200901">7</Col>
<Col id="COL_200902">8</Col>
<Col id="COL_200903">9</Col>
<Col id="COL_200904">10</Col>
<Col id="COL_200905">11</Col>
<Col id="COL_200906">12</Col>
<Col id="COL_200907">13</Col>
<Col id="COL_TEST">bind 테스트10</Col>
</Row>
<Row>
<Col id="BRANCH">중앙지점</Col>
<Col id="GUBUN">C</Col>
<Col id="COL_200807">1</Col>
<Col id="COL_200808">2</Col>
<Col id="COL_200809">3</Col>
<Col id="COL_200810">4</Col>
<Col id="COL_200811">5</Col>
<Col id="COL_200812">6</Col>
<Col id="COL_200901">7</Col>
<Col id="COL_200902">8</Col>
<Col id="COL_200903">9</Col>
<Col id="COL_200904">10</Col>
<Col id="COL_200905">11</Col>
<Col id="COL_200906">12</Col>
<Col id="COL_200907">13</Col>
<Col id="COL_TEST">bind 테스트11</Col>
</Row>
<Row>
<Col id="BRANCH">중앙지점</Col>
<Col id="GUBUN">B-C</Col>
<Col id="COL_200807">1</Col>
<Col id="COL_200808">2</Col>
<Col id="COL_200809">3</Col>
<Col id="COL_200810">4</Col>
<Col id="COL_200811">5</Col>
<Col id="COL_200812">6</Col>
<Col id="COL_200901">7</Col>
<Col id="COL_200902">8</Col>
<Col id="COL_200903">9</Col>
<Col id="COL_200904">10</Col>
<Col id="COL_200905">11</Col>
<Col id="COL_200906">12</Col>
<Col id="COL_200907">13</Col>
<Col id="COL_TEST">bind 테스트12</Col>
</Row>
</Rows>
</Dataset>
<Dataset enableevent="true" firefirstcount="0" firenextcount="0" preload="true" updatecontrol="true" useclientlayout="false" id="ds_DispDate">
<ColumnInfo>
<Column id="YYYYMM" size="256" type="STRING"/>
<Column id="DISP_HEAD1" size="256" type="STRING"/>
<Column id="DISP_HEAD2" size="256" type="STRING"/>
</ColumnInfo>
<Rows>
<Row>
<Col id="YYYYMM">200807</Col>
<Col id="DISP_HEAD1">08년 3분기</Col>
<Col id="DISP_HEAD2">7월</Col>
</Row>
<Row>
<Col id="YYYYMM">200808</Col>
<Col id="DISP_HEAD1">08년 3분기</Col>
<Col id="DISP_HEAD2">8월</Col>
</Row>
<Row>
<Col id="YYYYMM">200809</Col>
<Col id="DISP_HEAD1">08년 3분기</Col>
<Col id="DISP_HEAD2">9월</Col>
</Row>
<Row>
<Col id="YYYYMM">200810</Col>
<Col id="DISP_HEAD1">08년 4분기</Col>
<Col id="DISP_HEAD2">10월</Col>
</Row>
<Row>
<Col id="YYYYMM">200811</Col>
<Col id="DISP_HEAD1">08년 4분기</Col>
<Col id="DISP_HEAD2">11월</Col>
</Row>
<Row>
<Col id="YYYYMM">200812</Col>
<Col id="DISP_HEAD1">08년 4분기</Col>
<Col id="DISP_HEAD2">12월</Col>
</Row>
<Row>
<Col id="YYYYMM">200812</Col>
<Col id="DISP_HEAD1">08년 4분기</Col>
<Col id="DISP_HEAD2">13월</Col>
</Row>
<Row>
<Col id="YYYYMM">200901</Col>
<Col id="DISP_HEAD1">09년 1분기</Col>
<Col id="DISP_HEAD2">1월</Col>
</Row>
<Row>
<Col id="YYYYMM">200902</Col>
<Col id="DISP_HEAD1">09년 1분기</Col>
<Col id="DISP_HEAD2">2월</Col>
</Row>
<Row>
<Col id="YYYYMM">200903</Col>
<Col id="DISP_HEAD1">09년 1분기</Col>
<Col id="DISP_HEAD2">3월</Col>
</Row>
<Row>
<Col id="YYYYMM">200904</Col>
<Col id="DISP_HEAD1">09년 2분기</Col>
<Col id="DISP_HEAD2">4월</Col>
</Row>
<Row>
<Col id="YYYYMM">200905</Col>
<Col id="DISP_HEAD1">09년 2분기</Col>
<Col id="DISP_HEAD2">5월</Col>
</Row>
<Row>
<Col id="YYYYMM">200906</Col>
<Col id="DISP_HEAD1">09년 2분기</Col>
<Col id="DISP_HEAD2">6월</Col>
</Row>
<Row>
<Col id="YYYYMM">200907</Col>
<Col id="DISP_HEAD1">09년 3분기</Col>
<Col id="DISP_HEAD2">7월</Col>
</Row>
</Rows>
</Dataset>
</Objects>
<Script type="xscript4.0"><![CDATA[
function Button00_onclick(obj:Button, e:ClickEventInfo)
{
var v_Formats = "";
var v_Columns = "";
var v_Rows = "";
var v_BandHead = "";
var v_BandBody = "";
v_Columns += '<Column size="80" />\n';
v_Columns += '<Column size="100" />\n';
v_Rows += '<Row size="23" band="head" />\n';
v_Rows += '<Row size="23" band="head" />\n';
v_Rows += '<Row size="20" />\n';
v_BandHead += '<Cell rowspan="2" colspan="2" text="구분"/>\n';
v_BandBody += '<Cell text="bind:BRANCH" suppress="1"/>\n';
v_BandBody += '<Cell col="1" text="bind:GUBUN"/>\n';
// 포맷 생성
var v_HeadText = "";
var v_HeadColIdx = 2;
var v_BodyColIdx = 2;
for (var i=0; i<ds_DispDate.getRowCount(); i++) {
// Column 생성
v_Columns += '<Column size="60" />\n';
// Head 생성
if (v_HeadText != ds_DispDate.getColumn(i, "DISP_HEAD1")) {
v_HeadText = ds_DispDate.getColumn(i, "DISP_HEAD1");
var v_Colspan = ds_DispDate.getCaseCount("DISP_HEAD1=='" + v_HeadText + "'");
// Row 1
v_BandHead += '<Cell col="'+v_HeadColIdx+'" colspan="'+v_Colspan+'" text="'+v_HeadText+'"/>\n';
// Row 2
for (var j=i; j<ds_DispDate.getRowCount(); j++) {
if (v_HeadText == ds_DispDate.getColumn(j, "DISP_HEAD1")) {
v_BandHead += '<Cell row="1" col="'+v_HeadColIdx+'" text="'+ds_DispDate.getColumn(j, "DISP_HEAD2")+'"/>\n';
v_HeadColIdx++;
}
}
}
// Body 생성
v_BandBody += '<Cell style="align:right;" col="'+v_BodyColIdx+'" displaytype="number" text="bind:COL_'+ds_DispDate.getColumn(i, "YYYYMM")+'"/>\n';
v_BodyColIdx++;
}
v_Formats = '<Formats>\n';
v_Formats += '<Format id="default">\n';
v_Formats += '<Columns>\n';
v_Formats += v_Columns;
v_Formats += '</Columns>\n';
v_Formats += '<Rows>\n';
v_Formats += v_Rows;
v_Formats += '</Rows>\n';
v_Formats += '<Band id="head">\n';
v_Formats += v_BandHead;
v_Formats += '</Band>\n';
v_Formats += '<Band id="body">\n';
v_Formats += v_BandBody;
v_Formats += '</Band>\n';
v_Formats += '</Format>\n';
v_Formats += '</Formats>\n';
//trace(v_Formats);
grd_Sample.enableredraw = false;
grd_Sample.formats = v_Formats;
grd_Sample.enableredraw = true;
TextArea00.value = grd_Sample.getCurFormatString();
}
function Button01_onclick(obj:Button, e:ClickEventInfo)
{
var v_StartCol = 2;
var v_StartCell = 2;
// 기본컬럼을 제외하고 삭제
for (var i=grd_Sample.getCellCount("body"); i>1; i--) {
grd_Sample.deleteContentsCol("body",i,false);
}
// 컬럼 추가
for (var i=0; i<ds_DispDate.getRowCount(); i++) {
grd_Sample.appendContentsCol(false);
}
// Head 1 Level - Merge Cell
var v_CellIdx = v_StartCell;
for (var i=v_StartCell; i<grd_Sample.getCellCount("body"); i=i+3) {
grd_Sample.mergeContentsCell("head",0,i,0,i+2,v_CellIdx,false);
v_CellIdx++;
}
// Head 1 Level - Set Text
v_CellIdx = 1;
for (var i=0; i<ds_DispDate.getRowCount(); i=i+3) {
grd_Sample.setCellProperty("head", v_CellIdx, "text", ds_DispDate.getColumn(i, "DISP_HEAD1"));
v_CellIdx++;
}
// 컬럼 넓이 지정 & Text 지정 & Column binding
for (var i=v_StartCol; i<grd_Sample.getCellCount("body"); i++) {
//grd_Sample.setRealColSize(i, 60, true);
grd_Sample.setFormatColProperty(i,"size",60);
grd_Sample.setCellProperty("head", v_CellIdx, "text", ds_DispDate.getColumn(i-v_StartCol, "DISP_HEAD2"));
//grd_Sample.setCellProperty("body", i, "displaytype", "number");
//grd_Sample.setCellProperty("body", i, "style", "align:right;");
grd_Sample.setCellProperty("body", i, "text", "bind:COL_" + ds_DispDate.getColumn(i-v_StartCol, "YYYYMM"));
v_CellIdx++;
}
TextArea00.value = grd_Sample.getCurFormatString();
}
function Button02_onclick(obj:Button, e:ClickEventInfo)
{
// Design 때 생성한 Cell의 bind 정보 변경 ==> OK
grd_Sample.setCellProperty("body", 1, "text", "bind:COL_TEST");
// Runtime 때 생성한 Cell의 bind 정보 변경 ==> FAIL
grd_Sample.setCellProperty("body", 2, "text", "bind:COL_TEST");
}
]]></Script>
</Form>
</FDL>
반응형
'IT > xPlatform' 카테고리의 다른 글
| xPlatform 그리드 Line 동적으로 그리기 (0) | 2020.06.05 |
|---|---|
| xPlatform 동적으로 Div 생성(복사), 이벤트 등록, BindItem 생성 (1) | 2020.06.01 |
| xPlatform 콤보 대소문자 구별 없이 필터하기 (0) | 2020.06.01 |
| xPlatform 그리드 가로 병합 (0) | 2020.06.01 |
| xPlatform 그리드 복사/붙여넣기 (0) | 2020.05.26 |
댓글
